DSV D01 Stealth

Drysuit Systems · Inflation Valves

D01 Stealth

Combines First-Generation Piston Architecture, 35 mm control, and 360° swivel with stop for direct, load-stable air admission, with broad mount compatibility across multiple drysuit port standards.
Port Fit · Opening diameter:

Be notified when this product becomes available.

 Join the waitlist
DSV D01 Stealth inflation valve, side view with hose swivel fitting and HYDPRO nameplate
  • DSV D01 Stealth inflation valve, side view with hose swivel fitting and HYDPRO nameplate
  • Top-down view of the DSV D01 Stealth push button and 360° swivel hose connector
  • Exploded view of the DSV D01 Stealth showing push button, spring, retaining clip, and base
  • Three-quarter view of the DSV D01 Stealth mount thread and hose fitting
  • Close three-quarter view of the DSV D01 Stealth top cap and hose swivel elbow
  • DSV D01 Stealth inflation valve, side view with hose swivel fitting and HYDPRO nameplate
  • Top-down view of the DSV D01 Stealth push button and 360° swivel hose connector
  • Exploded view of the DSV D01 Stealth showing push button, spring, retaining clip, and base
  • Three-quarter view of the DSV D01 Stealth mount thread and hose fitting
  • Close three-quarter view of the DSV D01 Stealth top cap and hose swivel elbow

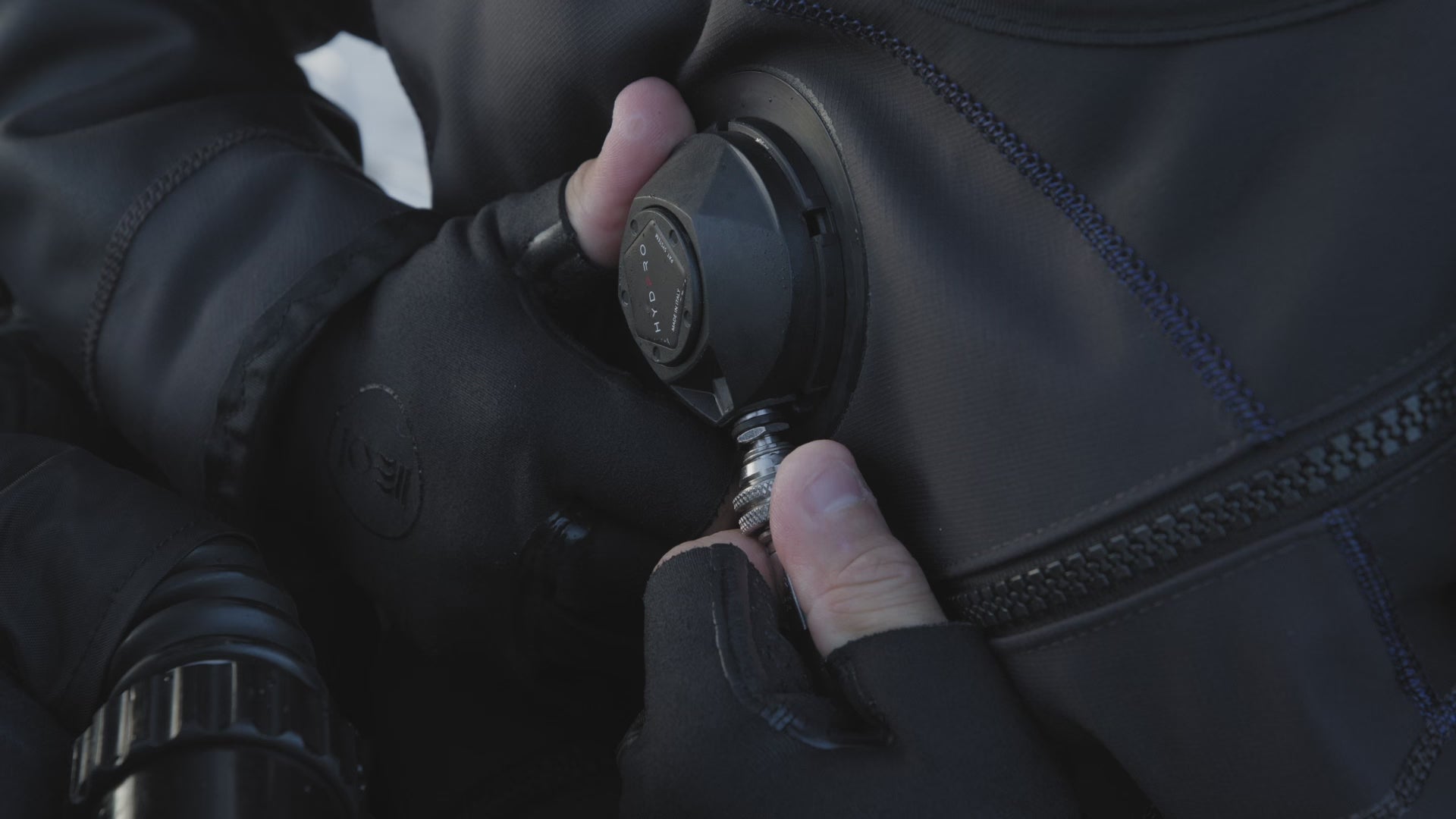

HYDPRO D01 Stealth DSV valve close-up on drysuit shoulder, diver swimming beneath ice shelf

DSV D01 Series

Stealth top profile, direct, load-stable piston actuation.

System configurations

DSV D01 Stealth valve disassembled, piston, spring and O-ring exposed

First-Gen Piston

Stable Feed Response. First-Generation Piston Architecture gives D01 Inflation a direct mechanical command path through the usable stroke. The firm break point supports clear actuation feedback, while airflow builds across three controlled levels from 150 to 275 L/min.
DSV D01 Stealth valve, top view showing the side swivel fitting

360° Swivel With Stop

Clean Routing Control. The integrated 360° swivel with stop keeps hose routing clean while limiting unwanted torsion at the inlet interface. The result is a more controlled feed path, with cleaner alignment and reduced stress during use.
DSV D01 Stealth valve at an angle, showing the suit-side fitting

Platform compatibility

Engineered for cross-platform integration, the D01 Series supports standard drysuit platforms through two native configurations: S-FIT and L-FIT.
DSV D01 Stealth: first-gen piston, 3kg inflation load, 150-275 l/m range, 360-degree rotation, 35mm flush button

Specifications

360° Swivel With Stop

Clean Routing Control. The integrated 360° swivel with stop keeps hose routing clean while limiting unwanted torsion at the inlet interface. The result is a more controlled feed path, with cleaner alignment and reduced stress during use.

 Full technical specs (PDF)

Port interface. Cross-platform fit.

D01 is engineered for the most established drysuit port standards through dedicated S-Fit and L-Fit configurations, matching 34 mm (1.34 in) and 38 mm (1.50 in) opening diameters while preserving the same D01 functional architecture.

Built to integrate. True to your setup.

Whatever the field runs, HYDPRO builds to it natively: every established mount standard, thread, and host geometry, covered from the factory. Your setup stays as it is, integration stays clean, and the response repeats: the same command, the same result, on every dive.

Italian engineering. Predictable control.

Each HYDPRO device is engineered and manufactured in Italy: one chain from raw material to release. Polymer families are selected for constant immersion, precision-drawn brass runs on in-house CNC lines, and every device leaves built, tested, and signed off under one roof.
HYDPRO power unit manufacturing: CNC machining, hand assembly, and the finished valve underwater

Proven by divers.
Refined by decades.

Four decades in the water stand behind the current generation. What wears, what binds, what drifts out of tune comes back from real dives to the bench, and the next revision answers it. Control you can feel, refined one generation at a time.
